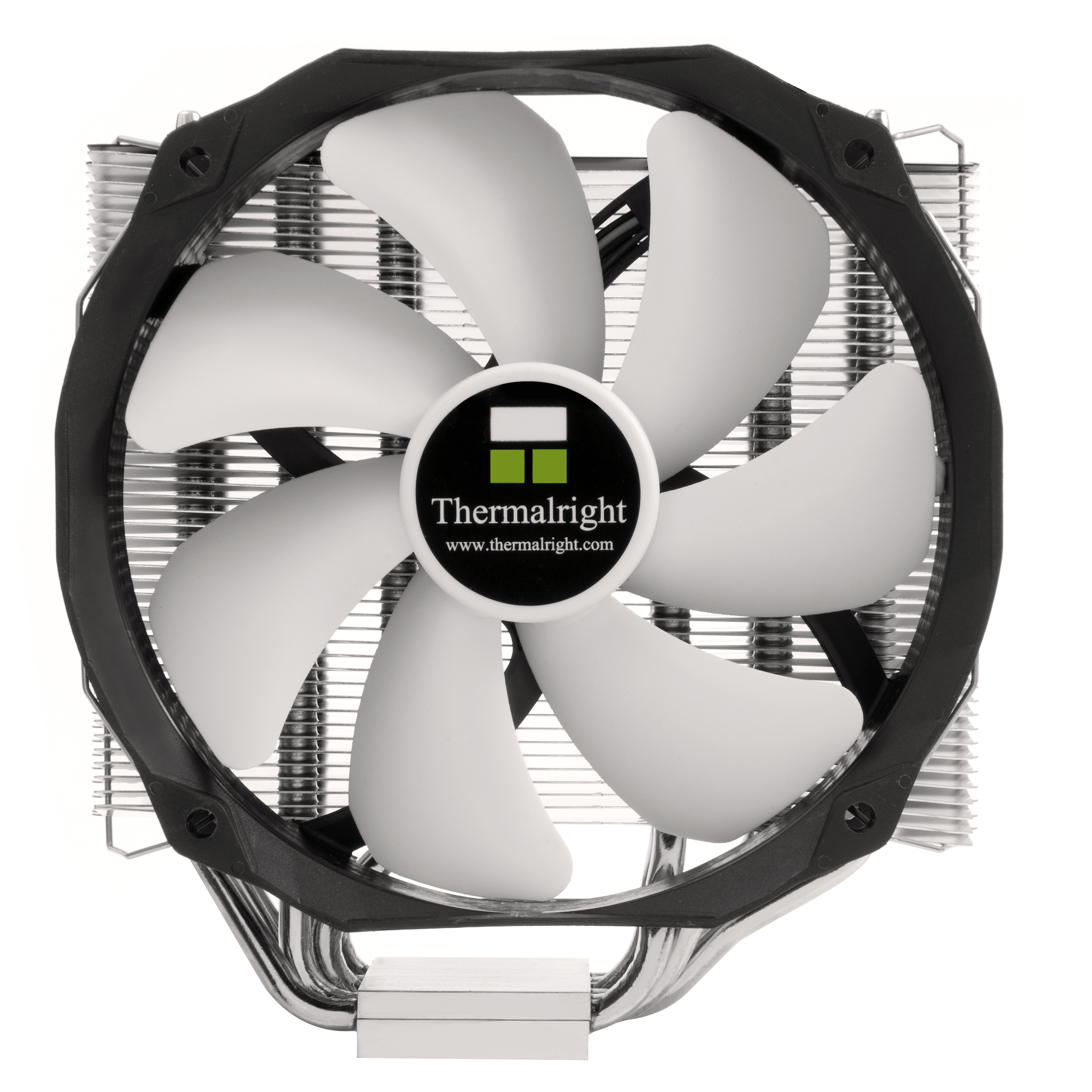

TRUE Spirit 140 (BW) Rev.A

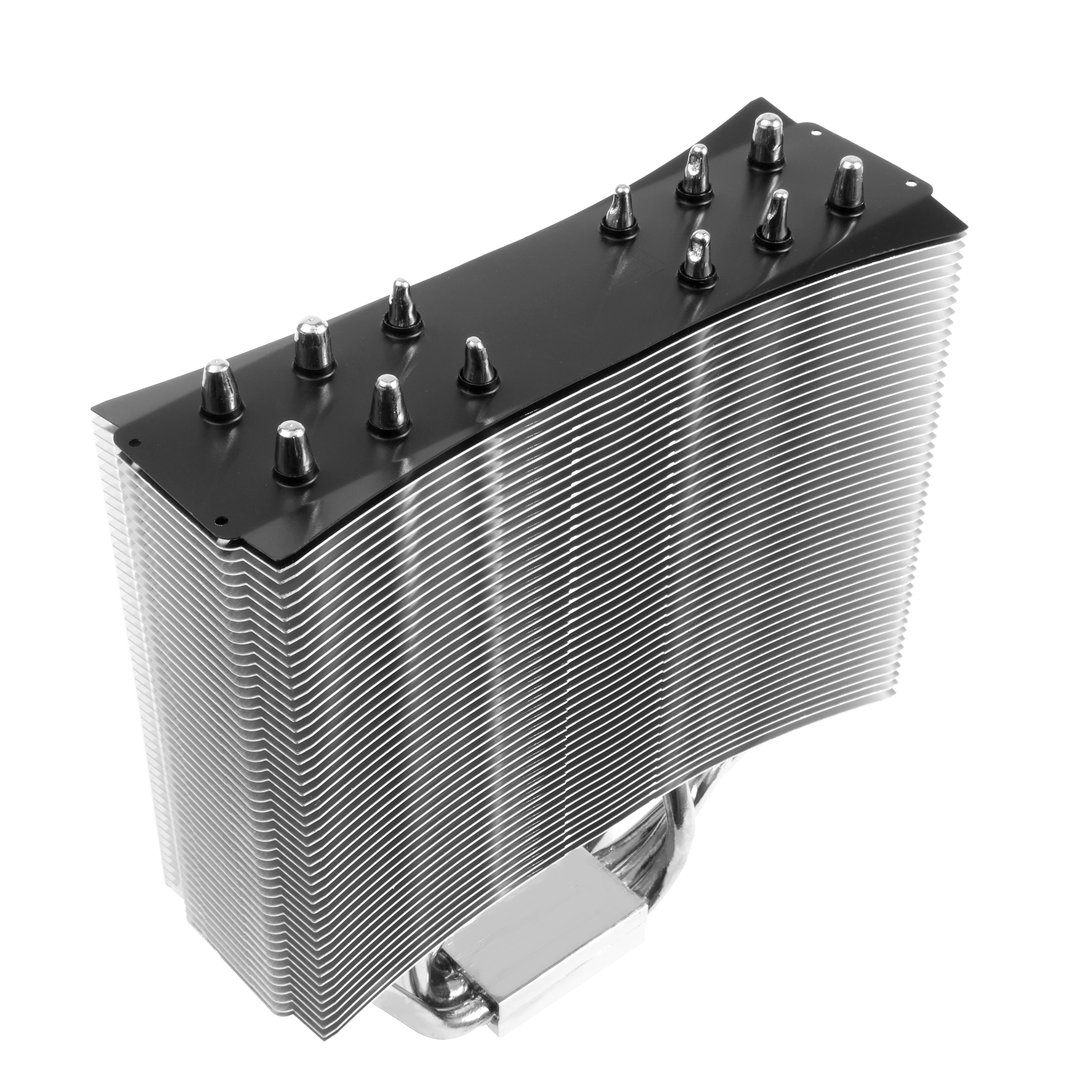

ULTRA style heatsink fin array, with copper base, elevates heatsink’s overall quality.
Large heatsink fin array, provides dissipating area of up to 150*125mm, make complete use of the airflow, with 140mm or 120mm fan.

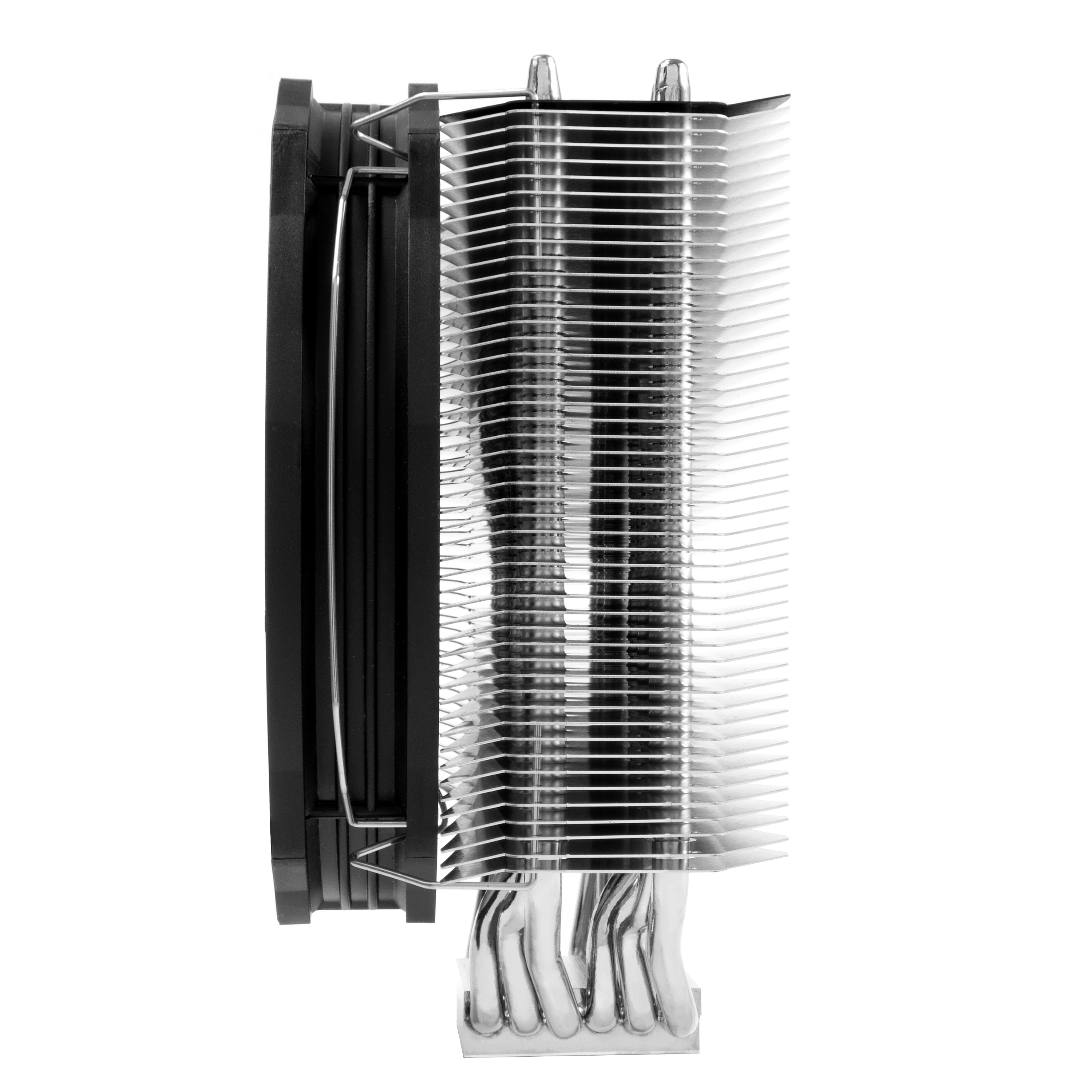

Heat-sink width of 55mm clears tall memory spreaders on LGA2011 platforms.

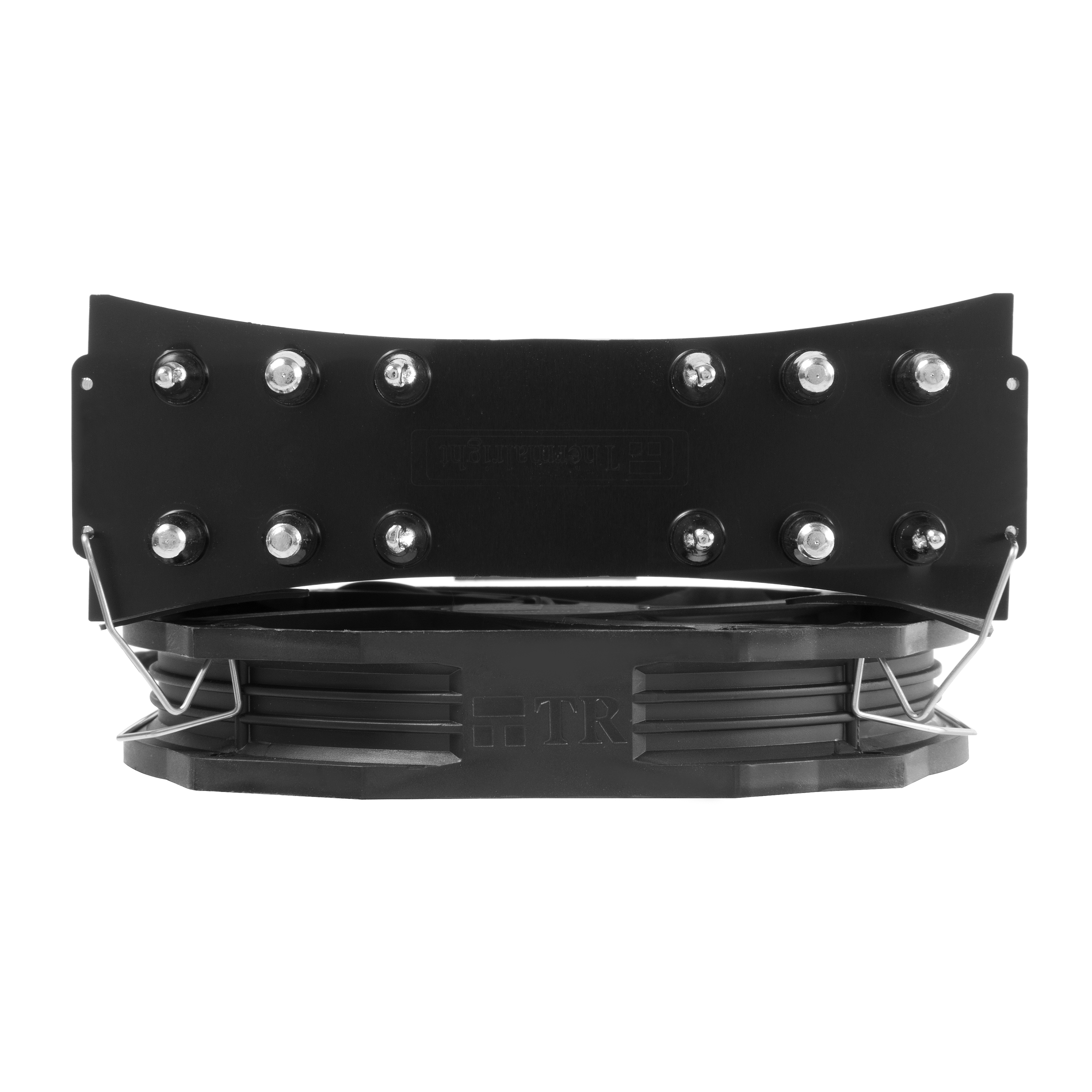

Heat-sink fin stack shifted away from VGA to clear 1st PCI-E slot.
Including one Thermalright TY-147A Utra-low noise 300~1300RPM PWM-Fan (MAX21 dBA)..
Fan-clips are compatible with both 140mm and 120mm fan.

Intel:  Socket LGA 775/1150/1151/1155/1156/1366/2011/2011-3
AMD: Socket AM2/AM2 /AM3/AM3 /FM1/FM2/FM /FM2


Product Description

Heatsink Specifications:
Dimension: L155 mm x W53.4 mm x H165.15 mm
Weight: 610g
Heat pipes: 6mm heatpipe x 6 units

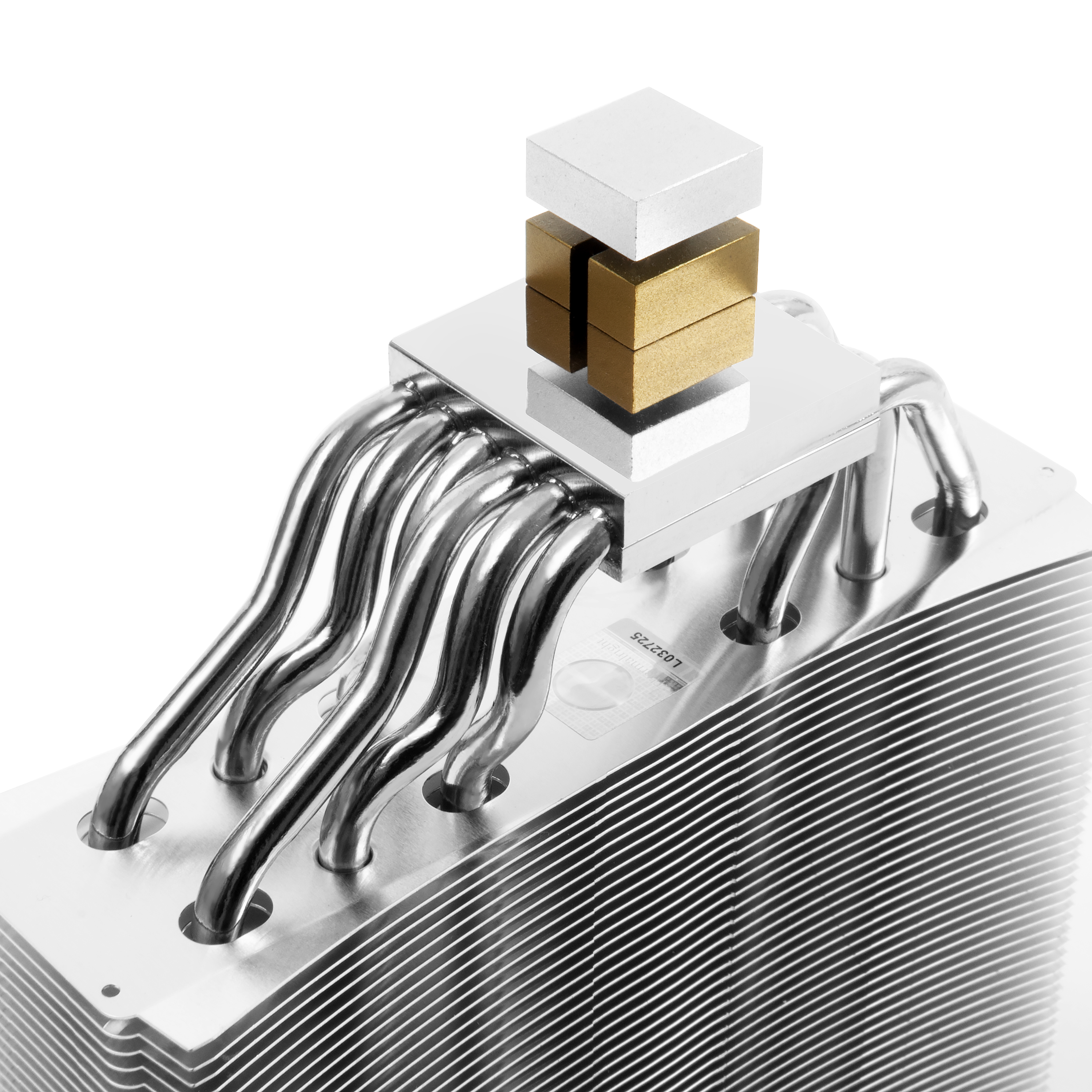

Copper Base: C1100 Pure copper nickel plated

TY-147A FAN Spec
Dimension: L152 mm x W140 mm x H26.5 mm
Weight: 160g
Rated Speed: 300 – 1300 RPM
Noise Level: 15 – 21dBA
Air Flow: 16.9- 73.6 CFM
Connector: 4 Pin (PWM Fan connector)
Click to enlarge

Thermal design power: 240watt
