Description
Technical Spec :
Heatsink Specifications:

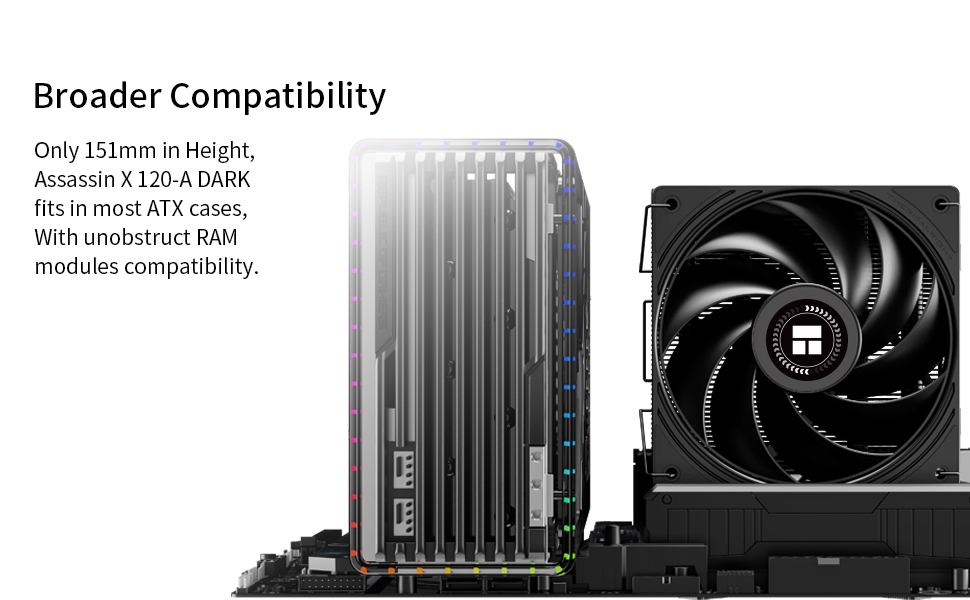

Dimension：L120 mm x W46 mm x H151 mm

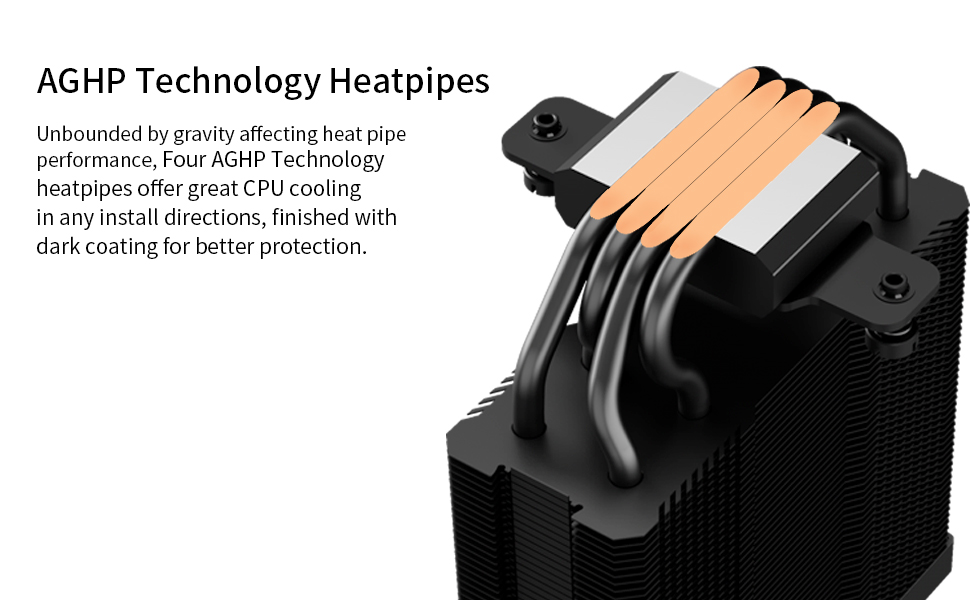

Heat pipes：6 mm heatpipe x 4 units

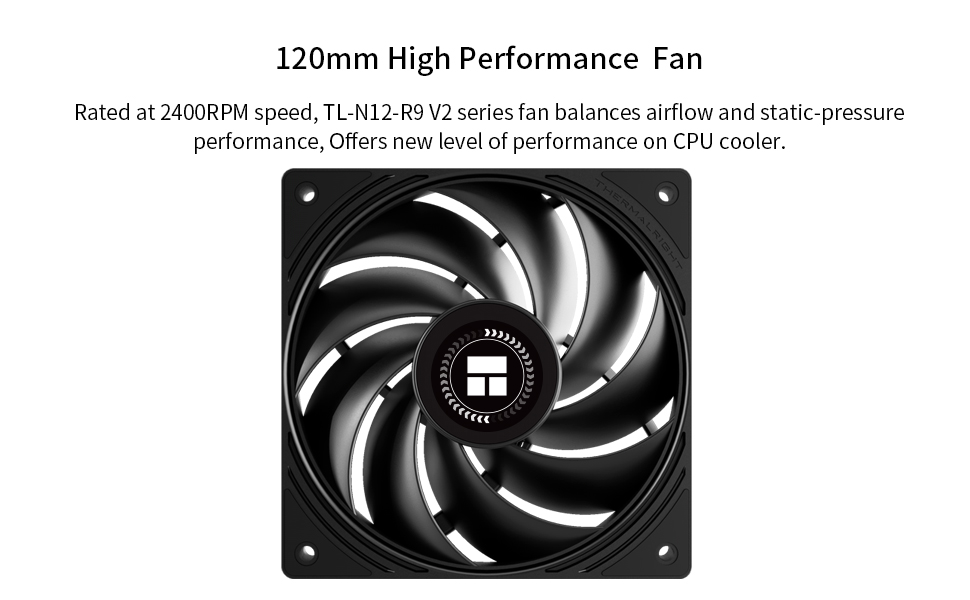

TL-NT12-R9 V2 FAN Spec：
Dimension：L120 mm x W120 mm x H25 mm
Rated Speed：2400 RPM±10% (MAX)
Noise Level：33.3 dBA
Air Flow：85.35 CFM (MAX)
Air Pressure：2.95 mm H2O (MAX)
Ampere：0.2 A
Connector：4 Pin (PWM Fan connector)
Bearing Type : Hydraulic Bearing
